Product Overview

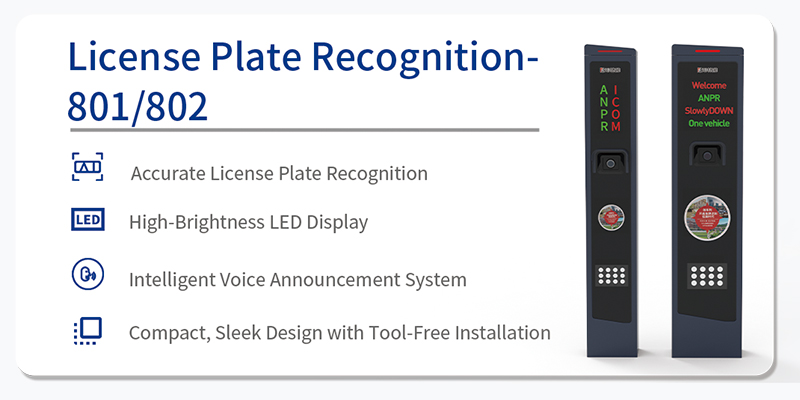

The Creation Series License Plate Recognition All-in-One System is an intelligent vehicle access management solution designed for various entry/exit points including parking lots, residential communities, toll stations, and corporate facilities. Featuring a unified industrial design language, this integrated system combines elegant aesthetics with high-performance functionality.
Core Features
Intelligent Recognition & Security
- 5MP HD camera with advanced LPR algorithm
- Anti-spoofing technology prevents fake license plate usage
- Optimized optical structure ensures 99.8% recognition accuracy
- Auto-adjustable LED fill light with light sensor control
- Integrated amber acrylic indicator for night visibility
Smart Interaction
- 4-line LED display with customizable content
- Multi-language voice guidance system
- Offline whitelist/blacklist management capability
Cloud Connectivity
- QR code payment integration
- Unlicensed vehicle management solution
- Centralized cloud management platform
- Real-time remote monitoring & maintenance
Technical Specifications
| Hardware Specifications |
|---|
| Model | YH-PCPC802 (Four-line display) |
| Processor | Dual-core ARM Cortex-A7 |
| Sensor | 1/2.7" CMOS Image Sensor |
| Lens | 6mm fixed focus |
| Performance Parameters |
|---|
| Recognition Rate | ≥99.8% |
| Supported Plates | All Chinese vehicle types including, military, embassy, and special plates |
| Trigger Methods | Loop detection & video triggering |
| Electrical Specifications |
|---|
| Power Supply | 12V-5A DC |
| Operating Temp | -25°C to 70°C |
| IP Rating | IP65 |
