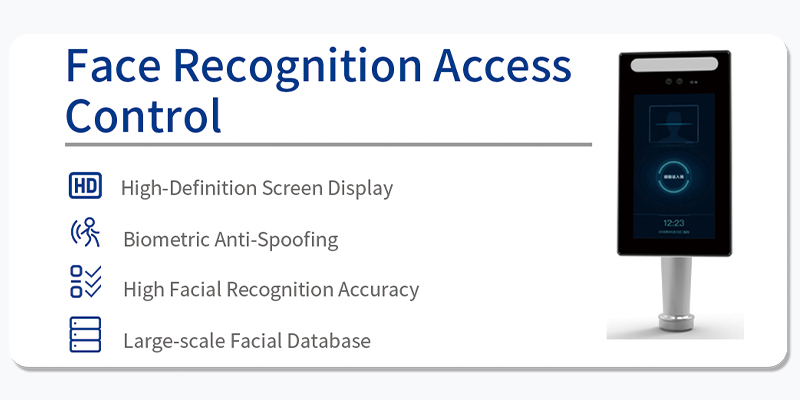

Yuanhong AI Face Recognition Terminal YH-R-RL-M7-P

Yuanhong AI Face Recognition Terminal
YH-R-RL-M7-P

Product Overview

The YH-R-RL-M7-P is an intelligent access control terminal designed for pedestrian passage management. Equipped with advanced neural network algorithms, it enables rapid and accurate facial recognition. Supports multiple verification methods including facial recognition, card access, with optional features like infrared temperature measurement, health code verification, and ID recognition.

Key Features

Integrated Design

Built-in health code verification and ID recognition modules

HD Imaging

Dual 2MP cameras with 7" HD display

Massive Capacity

Supports 30,000 facial templates & 60,000 offline records

Ultra-Fast Recognition

50ms face matching & 80ms liveness detection

Military Security

99.99% anti-spoofing rate with 3D noise reduction

Multi-Mode Access

Face, card, ID, temperature & health code verification

Technical Specifications

Model	YH-R-RL-M7-P
Display	7" HD capacitive touchscreen (1280×720)
Camera	Dual 2MP (RGB + IR), 1920×1080 resolution
Field of View	72° diagonal, 65° horizontal, 39° vertical
Connectivity	4G/WiFi (optional), 100M Ethernet, NFC
Power Supply	DC 12V/2A with surge protection
Operating Temp	-20°C to +70°C
Certifications	CE, FCC, RoHS, ISO 9001
